Oписание продукта

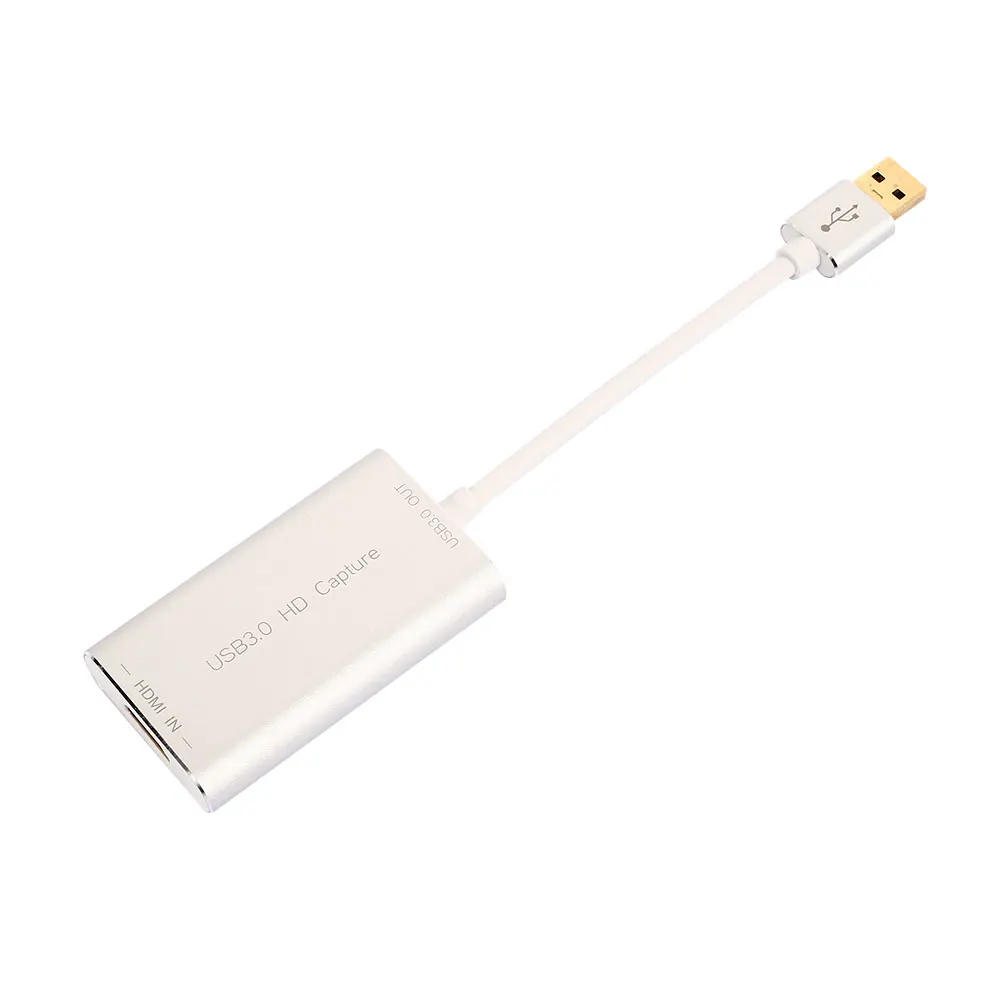

USB3.0 Full HD Video Capture Card Meets UVC, UAC Standards
No need to install drivers, plug and play
USB-to-PC USB 3.0 (USB 2.0 Compatible) Interface
Realize high-definition display of HDMI content, video recording, conference recording, game recording, and other functions on the computer
Supports 1920*[email protected] high-definition video capture, support for Windows 7/8/10, for MAC OS X, for Linux operating system

Specification:
Color: White
Material :Plastic paint

Instructions:
1. HDMIA Input Port - Connects an HDMI video source via an HDMI cable (sold separately).
2. 2. USB3.0A port - USB3.0 cable connected to the computer through the device idle USB3.0 interface user manual for OBS Studio operating instructions for Windows
Please go to the obsproject.com/download link, and download the corresponding for OBS Studio installation program according to your computer\'s operating system, and follow the installation program prompts to install.

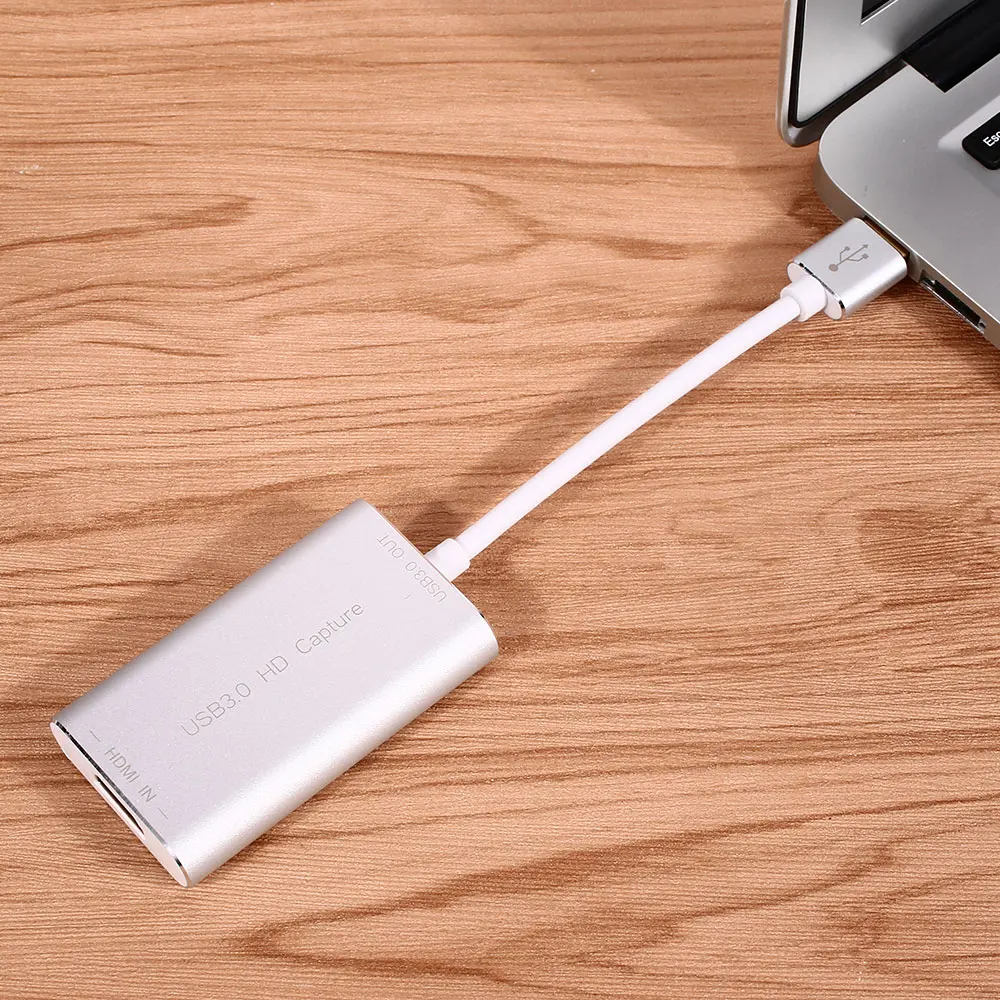

First, connect the capture card to the USB 3.0 interface of the PC and connect the HDMI source and the capture card with the HDMI cable.
It is recommended to set the audio sampling rate to 48KHz. The operation is as follows: a. Right-click the speaker icon in the lower right corner and select “Recording device(R)” from the popup menu.
Select "FHD Webcamera" in the list under the "Record" tab of the sound window and double-click it. Select the "Advanced" tab in the pop-up window and select "2 channels, 16 bits, 48000Hz" in the popup window as shown in the figure. DVD sound quality)".
If no audio input is found, or if you need to adjust the input audio amplitude, click the Levels tab to unmute or set the volume.
3. Use OBS Studio software to capture recorded video: a. Open the OBS Studio software, click on the "+" button under the "Source" window, and select "video capture device" in the popup menu.
The "Create or Select Source" window appears. Enter a name in the "New" field (this name is convenient for differentiating video capture devices, no specific requirements) and click the "OK" button to bring up the Properties Configuration box.
In the Properties Configuration dialog box, configure the following methods: Select FHD Capture from the drop-down list on the right of Device, and select Output WaveOut from the drop-down list on the right of Audio Output Mode. Select Use Define the audio device check box, select "Digital Audio Interface (FHD Capture)" in the drop-down box to the right of "Audio Device"; c. Resolve the delay, if the video and audio are not synchronized in the video recording process,
Can be solved according to the following operations: Right-click on the video capture device we added, select "Filter", in the pop-up dialog box, click "+", and select "Video Delay (Asynchronous)", after assigning a name for this filter, Enter the delay time in the pop-up dialog box (adjust the size of this value as needed until the audio and video are synchronized). d. Click "Start streaming" and "Start recording" in the lower right part of the software to perform webcasting and video recording.
The for OBS Studio for MAC for OS for X and Linux systems is the same as the one for Windows, please refer to the for OBS Studio operating instructions for Windows.

Packing list :
1* Video capture card
1*English instructions
