252*10MM LED Wash Wall Light RGB DMX512 City Color Lights for Indoor Stage Lighting Floodlights

252*10MM LED Wash Wall Light RGB DMX512 City Color Lights for Indoor Stage Lighting Floodlights
  • Продавецbashgah.info
  • Список ценUS $120.00piece
  • Продажная ценаUS $120.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (453)

Oписание продукта

Kindly Note  8mm PCB connector is for PCB width : 8mm(pin distance:3.4-3.5mm) RGB led strip 220V/110V
                      10mm PCB connector is for PCB width : 10mm/12mm(pin distance:4.3-4.4mm)RGB led strip 220V/110V

++++Description+++

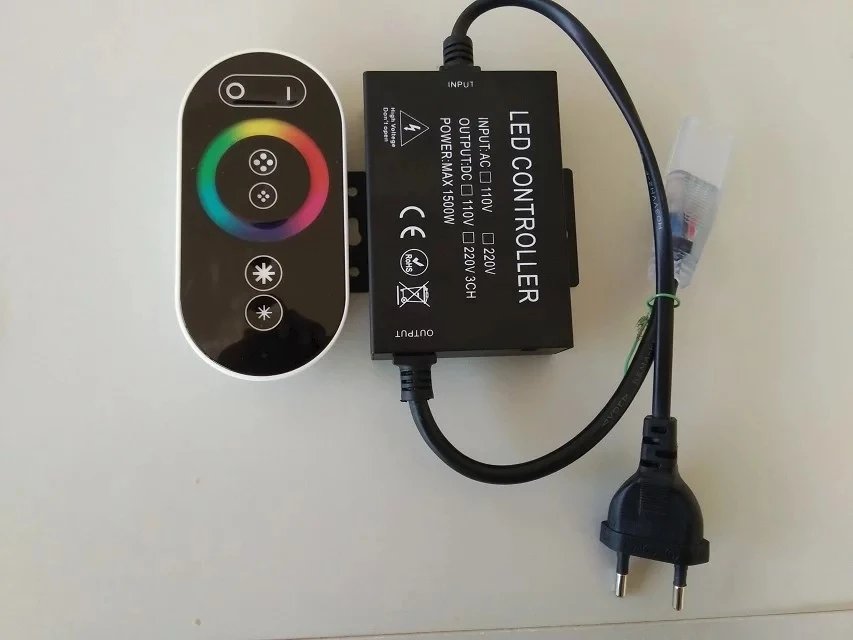

This is a type 110V 120V 220V 230V 240V High power voltage RF touch controllefor RGB 3528/5050 SMD strip light

It can run 5050 60leds/m 100meter and 3528 60leds/m strip 300meter .

This type controller comes with EU plug (220V) or US plug (110V), please tell us what plug you need, or we will send EU plug to you as default , thank you!



Technical Parameters (remote control):

1. Power supply: AAA battery * 3pcs (Not included)

2. Cover material: ABS
3. Fabrication processing: multicolour printing & UV varnish
Specification:

Technical Parameters (controller):

1. Working voltage: AC110V-120V/ 220-240V
2. Output control: 3 circuits (R / G / B)
3. Max power: 1500W
4. Connection method: common anode
5. Dimension: L150 * W95 * H59MM
6. Receiving range: 30meters


How to use:

1. Press Key 1 to turn on / off in any state.
2. Press Key 2 to activate light changing mode, keep pressing for different programs. There are 15 programs in total.
3. Press Key 3 once to activate white light mode, you can change brightness by pressing Key 4 or Key 5.
Press Key 3 twice to activate color ring, changing brightness by pressing Key 4 / Key 5 or changing light color by touching the color ring.
4. Resume function. The previous settings will be resumed while power on again.
5. To match the remote control to the receiver (You do not need to do this when first out the box). Press Key 4 once when first switched on within 3 seconds.
The light will blink 3 times to indicate that the remote control is matched Clearing Code
Press Key 4 five times when first switched on, again, the light will blink 6 times if clearing is successfull
Package include:
5pcs x RF RGB controller(no battery)
