Oписание продукта

Brand: TF.    Quality Guaranty 2 Years!

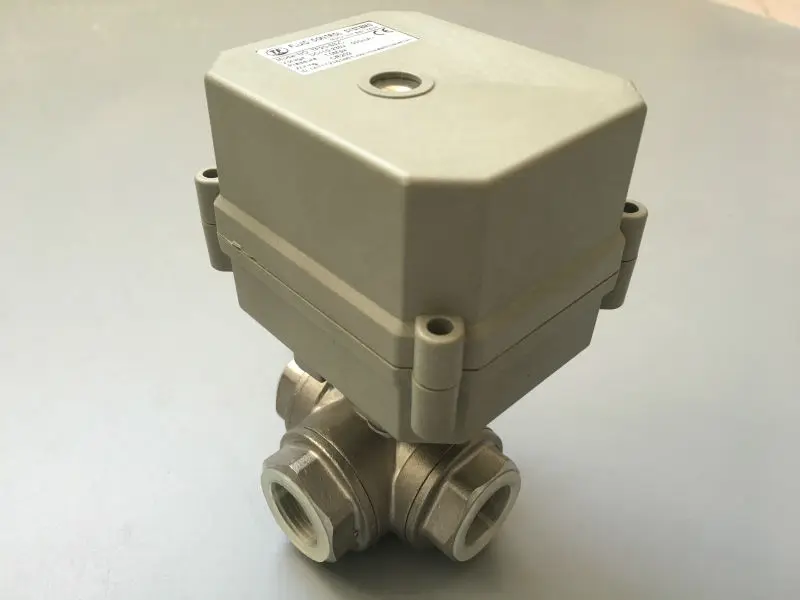

IMG_0985

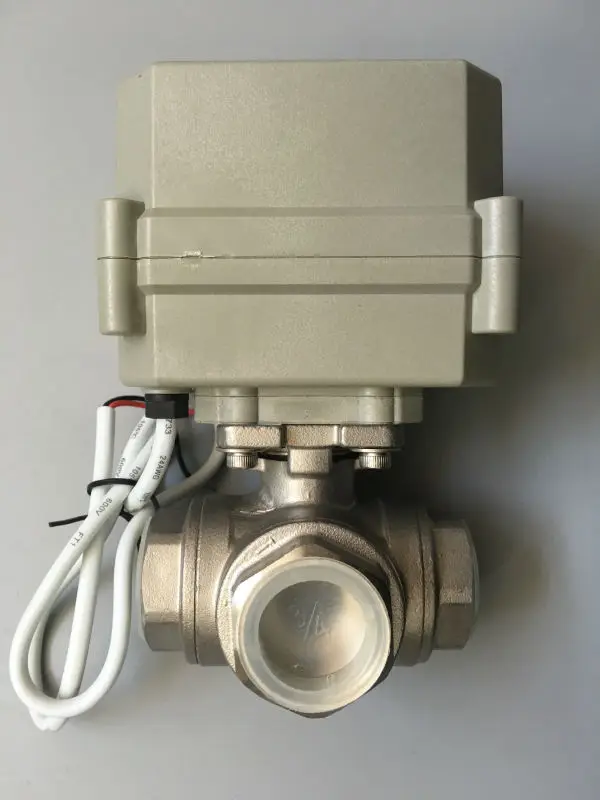

IMG_0986

Factory directly sales,we need about 3-5 business day for production!


_______________________________________________________________

Applications:


HVAC

Fan coil

Central Air conditional System

Water Heter

solor Water heating

Water treatment

water automatic control Equipment

Replacing solenoid valve,particularly when solenoid cannot work reliably


 _______________________________________________________________


WIRING DIAGRAMS:





CR3 03 ADC9-35V 3 wires
_______________________________________________________________

Description:

Product size: BSP/NPT 1/2",  DN15

Valve Type: 3 Way T bore valve

Valve Body Material: Stainless Steel 304

Working Voltage: DC24V

Open/close Time: 15 Sec

Wiring Control MethodsCR3 03

Maximum Working Pressure: 1.0MPa

Circulation Medium: Fluid, Air

Working Current: 500MA

Life time: 100,000 times

Actuator Material: Engineering Plastics

Sealing Material: EPDM & PTFE

Actuator Rotation: 90°

Max. Torque Force: 10 N.M

Cable Length: 0.5m

Environment Temperature:-15°~50°

Liquid Temperature: 0°~100°

Manual Override:   No

IndicatorYes

Protection Class: IP67

_______________________________________________________________

Demention Drawing:
3 Way SS304 Valve A100 Series

IMG_0985IMG_0987IMG_0984
